1825910-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1825910-1
Datasheet:
Description:

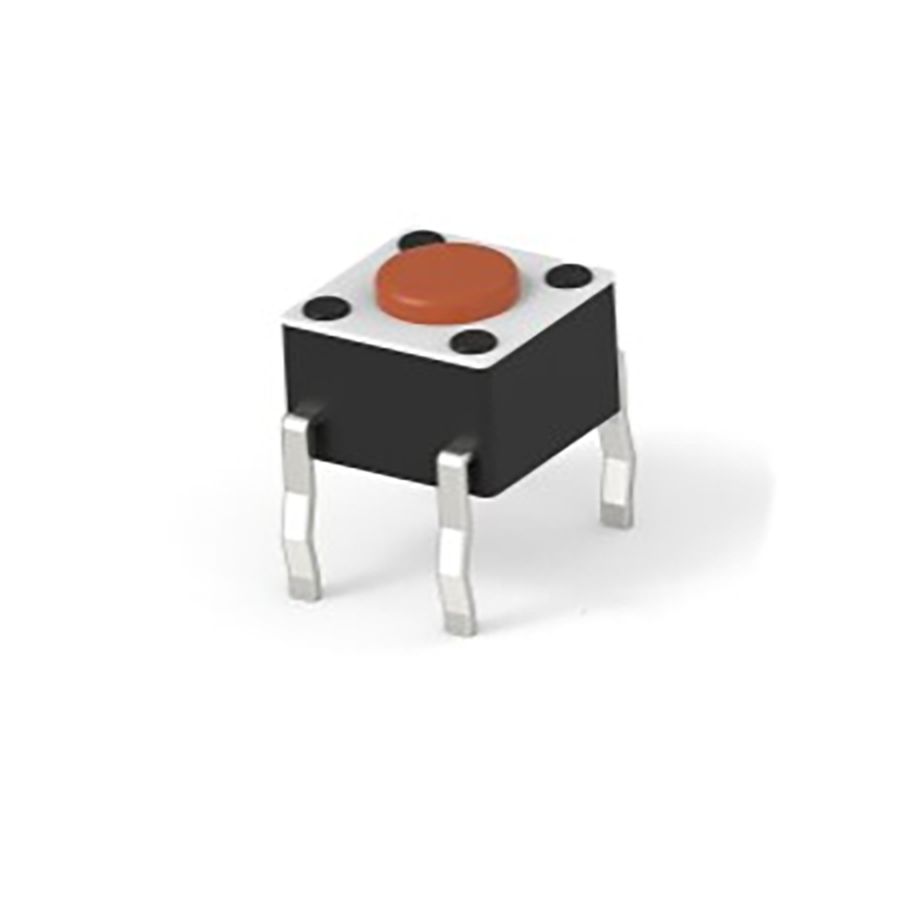

Tactile Switches Through Hole SPST-NO Off-Mom 1 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 5.99 mm |
| Termination | PC Pins, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Silver |
| Type | Switch |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| ELV | Compliant |
| Actuator Length | 700 µm |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 1 N |
| Switch Travel | 250 µm |
| Actuator Material | PBT |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Mounting Direction | Straight |
